Boiler Feed Pump Calculator: Sizing, Formulas & Tank Design
Performing an accurate boiler feed pump calculation is a safety-critical requirement for steam power plants, chemical process facilities, and industrial manufacturing sites. Use our online feed pump rate calculator to analyze volumetric flow rate, Total Dynamic Head (TDH), brake horsepower (BHP), and Net Positive Suction Head Available (NPSHa).
Precision Flow & TDH Sizing
Computes feedwater mass flow, continuous blowdown allowance, density expansion using IAPWS-IF97 standards, and Darcy-Weisbach friction head loss.
Boiler Feed Tank Sizing
Evaluates deaerator storage volume, 10 to 20 minute retention time rules, and static suction elevation requirements to prevent pump cavitation.
Code Compliance & PDF Reports
Fully aligned with ASME BPVC Section I, API 610 (12th Edition), and ISO 9906 standards with instant PDF engineering report export.

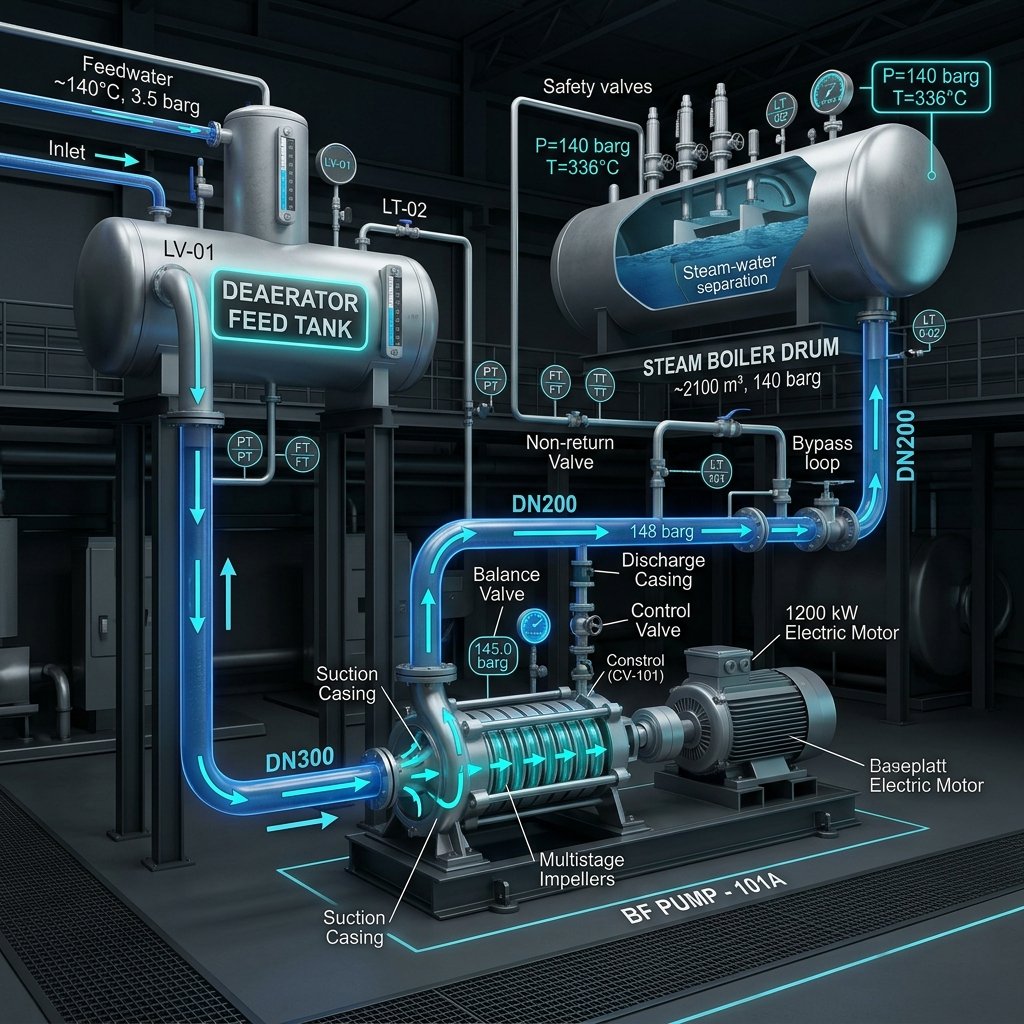

Figure 1: High-Pressure Multistage Boiler Feed Pump Circuit with Elevated Deaerator Tank & Steam Drum Integration.
Boiler Feed Pump Calculation Formula & Governing Equations
Sizing a boiler feed pump involves solving four coupled hydraulic and thermodynamic steps:
1. Volumetric Flow Rate (Q_design)
Q_operating = M_feedwater / ρ_water(T)
Q_design = Q_operating × 1.15
Accounts for steam mass flow rate, blowdown losses (typically 3%–5%), and an ASME-recommended 15% flow margin.
2. Total Dynamic Head (TDH)
H_discharge = [ (P_boiler × 1.05 + ΔP_loss) / (ρ × g) ] + Z_discharge
Overcomes drum pressure, economizer pressure drop, control valve losses, line friction, and static elevation lift.
3. Brake Horsepower (BHP)
P_brake = P_hydraulic / η_pump [kW]
Defines actual shaft power needed from the electric motor driver based on pump efficiency (η_pump).
4. Net Positive Suction Head (NPSHa)
Ensures suction pressure exceeds liquid saturation vapor pressure to eliminate cavitation risks.
Boiler Feed Tank Sizing & Retention Time Rules
In steam plant engineering, boiler feed tank sizing dictates how long the plant can operate during makeup water interruptions or severe condensate return delays. According to standards published by Spirax Sarco Steam Engineering and the Hydraulic Institute :
- 10 to 20 Minute Retention Rule: Recommended liquid holding capacity at Maximum Continuous Rating (MCR).
- Gross Tank Volume: Set to V_effective / 0.60 to account for minimum liquid level (20%) and vapor/surge space (20%).
- Elevation for Cavitation Avoidance: Feed tanks and deaerators operating at saturated temperatures (105°C) must be placed 5 to 9 meters above the pump centerline.
Feed Pump Rate Calculator & Unit Conversion Matrix
When utilizing a feed pump rate calculator or feeding pump rate calculator, engineers frequently convert boiler output parameters into volumetric pumping rates (GPM or m³/h):
| Boiler Rating | Steam Evaporation Rate | Feed Pump Flow (incl. 5% Blowdown & 15% Margin) |
|---|---|---|
| 1 Boiler HP (BHP) | 34.5 lb/hr (15.65 kg/h) | 0.076 GPM (0.017 m³/h) |
| 100 BHP Package Boiler | 3,450 lb/hr (1,565 kg/h) | 7.6 GPM (1.73 m³/h) |
| 5 Ton/hr Steam Boiler | 11,023 lb/hr (5,000 kg/h) | 27.1 GPM (6.16 m³/h) |
| 20 Ton/hr Power Boiler | 44,092 lb/hr (20,000 kg/h) | 108.4 GPM (24.62 m³/h) |
